RLD-0.5

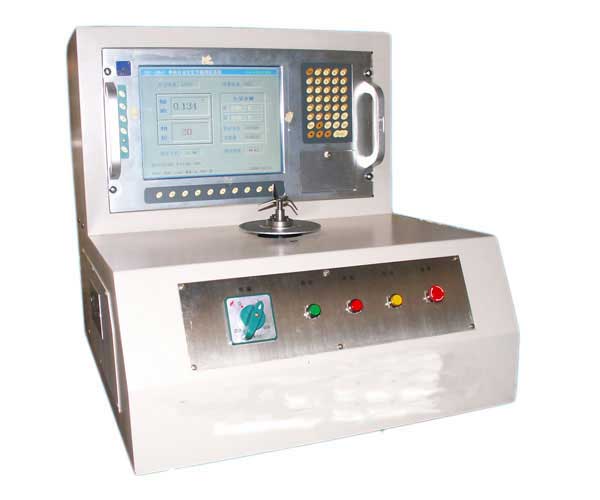

RLD-0.3 Single-plane Vertical balancing machine
Mainly applicable to Fan, fan blades, impeller, brake, Wind leaf, fruit juice machine screen, joint disc and other revolving body workpiece dynamic balance check.。The measuring system is based on the industrial computer, LCD display, data stability, high measurement precision。
| Type of balancing machine |
Single-plane Vertical balancing machine |
| YLD Series |
| Specifications Type |
RLD-0.5 |
| Mass of work |
0.5 kg |
| Max. dia of works |
150 mm |
| Balancing speed |
700- 3000 r/min （Frequency control） |
| Motor power |
0.18kw |
| Min. achievable residual unbalance amount emar |
≤ 0.5g.mm/kg |
| Unbalance reduction ratio URR |
≥90% |
