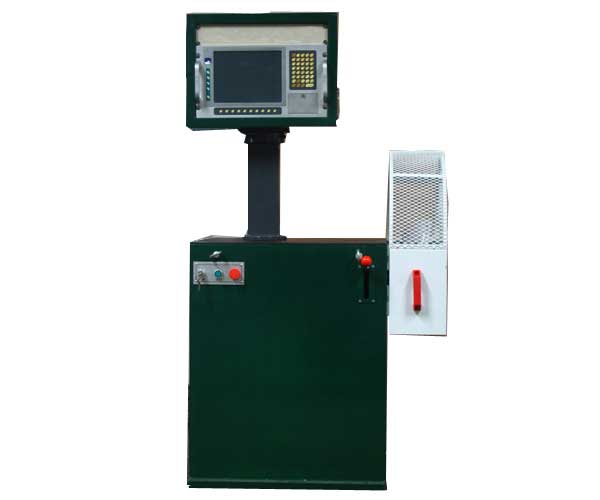

YDW-16 Horizontal dynamic balancing machine
Mainly applicable to Fan, fan blades, impeller, brake, saw blade, belt wheel clutch, brake disc and other revolving body workpiece dynamic balance check.The measuring system is based on the industrial computer, LCD display, data stability, high measurement precision

Type of balancing machine Single-plane Vertical balancing machine
YLD Series
Specifications Type YDW-16
Mass of work 16 kg
Max. dia of works 600 mm
Balancing speed 900 r/min
Motor power 1.1 kw
Min. achievable residual unbalance amount emar ≤ 3g.mm/kg
Unbalance reduction ratio URR ≥90%
