YLD-100

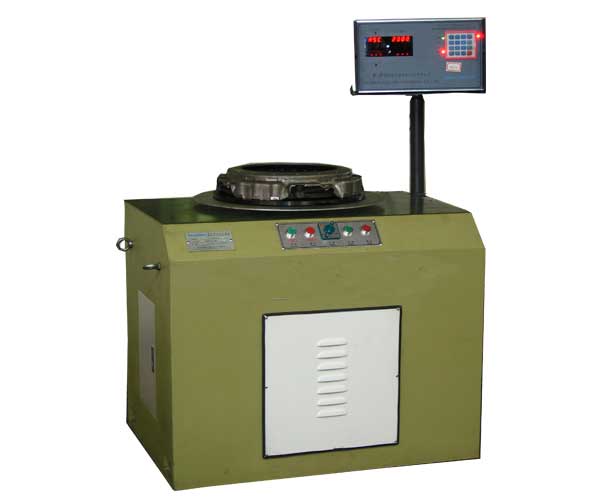

YLD-100 Single-plane Vertical balancing machine
Mainly applicable to the flywheel, fan blades, impeller, brake, saw blade, belt pulley, clutch, brake discs, brake disc and other revolving body workpiece dynamic balance check.。The measuring system is based on the industrial computer, LCD display, data stability, high measurement precision
| Type of balancing machine |
Single-plane Vertical balancing machine |
| YLD Series |
| Specifications Type |
YLD-100 |
| Mass of work |
100 kg |
| Max. dia of works |
900 mm |
| Balancing speed |
700r/min（Frequency control） |
| Motor power |
3kw |
| Min. achievable residual unbalance amount emar |
≤ 5g.mm/kg |
| Unbalance reduction ratio URR |
≥85% |
| Power supply |
Three-phase AC380v 50-60Hz |
