YLD-30

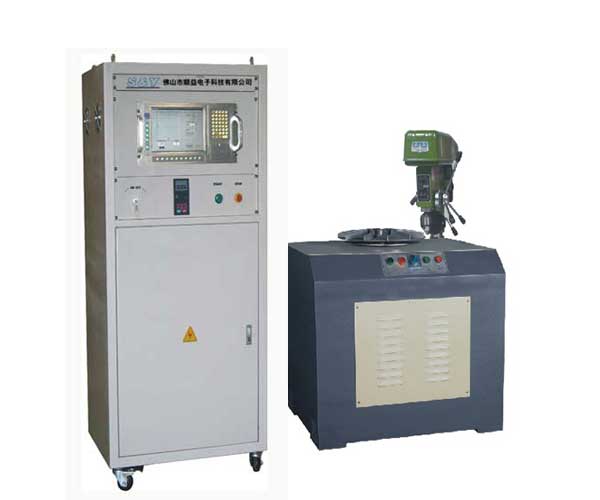

YLD-30 Single-plane Vertical balancing machine
Mainly applicable to the flywheel, fan blades, impeller, brake, saw blade, belt pulley, clutch, brake discs, brake disc and other revolving body workpiece dynamic balance check.The measuring system is based on the industrial computer, LCD display, data stability, high measurement precision

Type of balancing machine Single-plane Vertical balancing machine
YLD Series
Specifications Type YLD-30
Mass of work 30 kg
Max. dia of works 650 mm
Balancing speed 900 r/min
Motor power 1.5 kw
Min. achievable residual unbalance amount emar ≤5 g.mm/kg
Unbalance reduction ratio URR ≥85%
