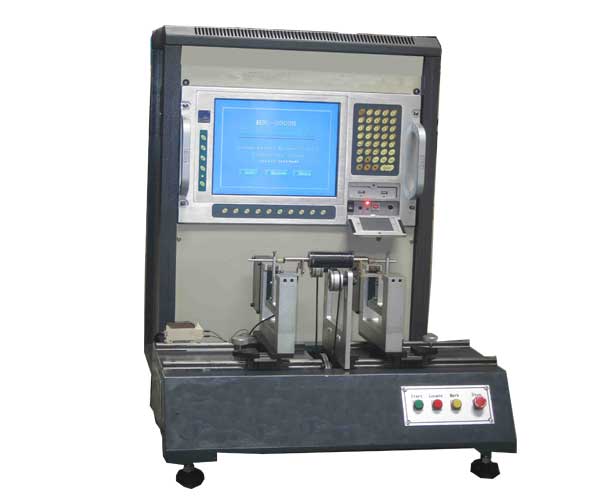

RYQ-0.5 Auto-Positioning Balancer
RYQ-0.5C Auto-Positioning Balancer
Mainly applicable to Micro motor, electric tool industry etc dynamic balance check.
| Type of balancing machine |
SOFT Bearing Balancing Machine |
| Specifications Type |
RYQ-0.5 |
| Max. mass of works (kg) |
0.5 |
| Max. dia of works (mm) |
Φ100 |
| Journal dia of works (mm) |
Φ2~10 |
| Dia of belt drive(mm) |
Φ10~50 |
| Min distance between supports(mm) |
20-400 |
| Balancing speed (r/min) |
500~5000 |
| Driving motor power |
180W |
| Driving mode |
Down tangent belt drive or no |
| Min achievable residual unbalance amount |
emar≤0.1g.mm/kg |
| Unbalance reduction ratio |
URR≥95% |
